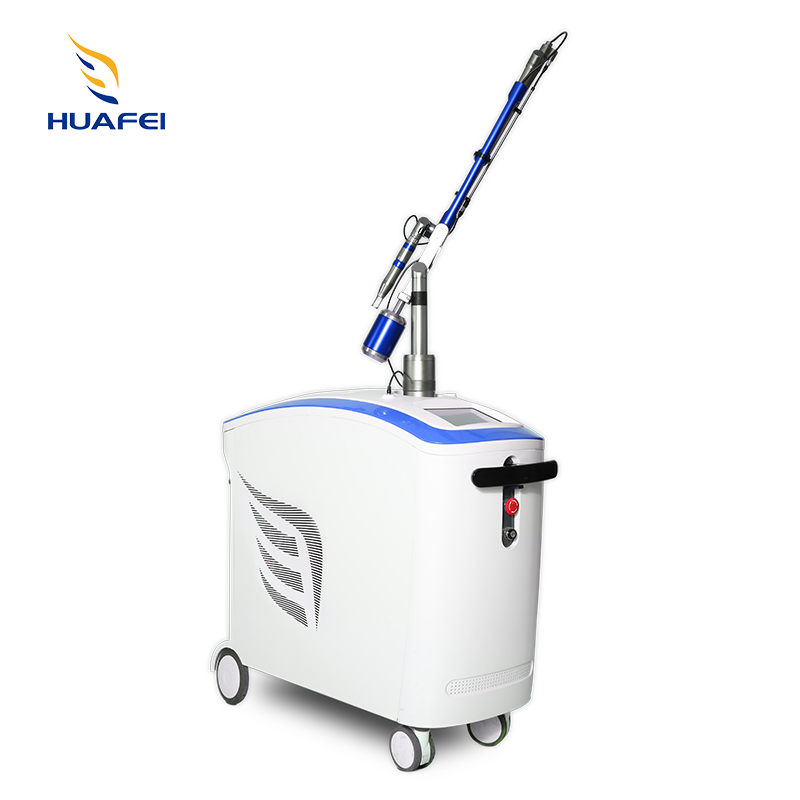

Nanosecond Laser Tattoo Removal System

HF-503Q Nano laser compared to conventional Q-switched laser, it has a pulse width of only 6ns.

The treatment of the skin is mainly mechanical effect, through the principle of the light mechanical shock wave, the pigment crushes fine particles through focused energy, it is more easily metabolized by the body.

The pulse width output of 6ns can reduce the effect of thermal effect. It is also convenient to observe skin reactions during treatment. It is very effective in treating pores

Q-Switched Nd:YAG laser Pigment Removal Tattoo Removal Machine

Function：

Melasma.
Remove tattoos, such as eyeliner, and lip liner.
Epidermal pigmented spots such as freckles and age spots.
Acne pits, acne marks, and acne scars.
Effective repair of sensitive skin, skin whitening, and rejuvenation.

Advantage：

Output mode optional 1064nm, 532nm, double pulse output.
Higher efficiency of pigment removal.
Don’t damage the normal tissue.
Stable beam shape with energy calibration ensures the emission of stable and uniform light spots.

Technical Specification

Laser type	Solid-state laser
Wavelength	1064nm, 532nm
Spot size	1-10mm(adjustable)
Pulse width	6ns±2ns
Beam-divergence angle	1mrad
Cooling system	Enclosed internal circulation water cooling, external circulation of strong wind cooling
Input power	2200W(AC220V/10A, AC110V/20A)
Energy	1064nm	300-1200mJ(adjustable)
	532nm	150~600mJ(adjustable)
	Pulse frequency	1-10Hz(adjustable)
	Indicated light wavelength	650nm
